Turning Plate Shot Blasting Machine
Turning Plate Shot Blasting Machine

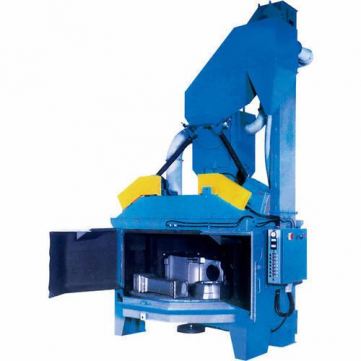

The TP-line of Turning Plate shot blasting machines are designed to blast small to medium sized work pieces on a rotating plate. The units can be used to blast many different types of workpiece including forged and cast parts, car wheels and provides a bright and profiled surface. Available in Ferro and non-Ferro performance.
Grit 18
Aluminum oxide
Mk
Mk
Aluminum oxide 100
Type | TP3512 | TPF3512 | TPF3525F |
Diameter of cleaning chamber (mm) | 1350 x 560 | 1350 x 860 | 2854 x 560 |
Cleaning workpiece size (mm) | 600 x 250 x 250 | 600 x 250 x 500 | 600 x 500 x 250 |
Turntable car Loading weight (kgs) | 400 | 400 | 1000 |
Diameter (mm) | 1200 | 1200 | 2500 |
Wheelblast equipment Blasting capacity (kgs) | 200 | 3 x 120 | 2 x 250 |
Lifting capacity of elevator (t/h) | 15 | 15 | 30 |
Separation quantity of separator (t/h) | 15 | 15 | 30 |
First loading capacity (kgs) | 400 | 400 | 1500 |
Ventilation volume (m3/h) | 2800 | 2800 | 5200 |
External dimensions (mm) | 9350 x 3450 | 1900 x 1900 | 4260 x 3647 x 5366 |
Power except for dustcleaning (kw) | 24.5 | 24.5 | 35.2 |
