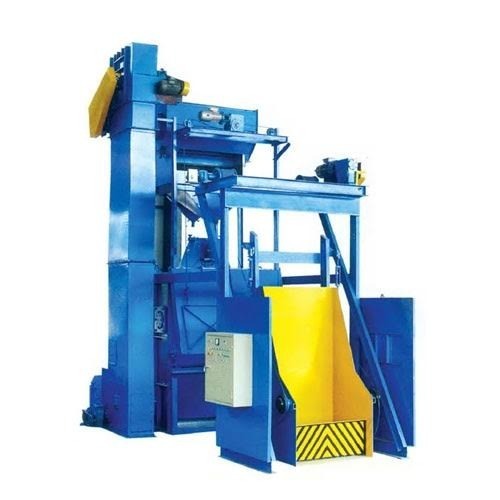

Tumble belt shot blasting machine

The TB15GN, TB(R)32 & TB28GN machines can be used to remove sand and rust from cast, forged and welded parts as well as aluminum and other non-ferrous parts. This series is especially effective for hard-to-clean parts, non-fragile parts and non-core castings. These machines are also available in full automation.

Grit 18

Aluminum oxide

Mk

Aluminum oxide 100

Type	TB15GN	TB28GN
Size of roller (mm)	1090 x 1245	1245 x 1778
Diameter of roller (mm)	1092	1250
Working cubage (m3)	0.43	0.79
Max. weight of 1 piece (kgs)	227	363
Max. size of 1 piece (mm)	1000	1000
Loading weight (kgs)	800	3500
Pill impelling volume (kgs/min)	480	340×2
Impeller head power (kw)	22	30

The TB32 Series can be used for surface cleaning, removing rust and surface intensification of various small and middle sized cast or forged work pieces. The addition of a continuous conveyor allows for increased production rates when used as part of a production line.

Type	TB326	TB3210	TBR3210
Productivity (ton/hour)	0.6 - 1.2	3-5	1.5-2.5
Loading weight (kgs)	200	800	600
Max. weight of 1 piece (kgs)	10	15	30
Diameter of roller (mm)	650	1000	1000
Available capacity (m3)	0.15	0.4	0.3
Pill impelling volume (kgs/min)	100	250	250
Dedusting air volume (m3/hour)	2200	6000	5000
Power dissipation (kw)	12.6	32.6	24.3
Dimensions (mm)	3681 x 1650 x 5800	3644 x 2926 x 5856	3972 x 2600 x 4768
Total weight (kgs)	2340	5843	740
