Round spring shot blasting machine

Round spring shot blasting machine

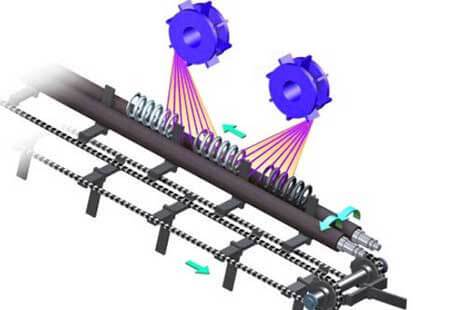

The RS265, RS2615, and the RSES1422 have been specifically designed to achieve the perfect result when blasting  round springs. Round springs offer a unique blasting challenge - complete blasting coverage is vital in the critical environment in which the springs operate. Positioning of the blast wheels is crutial in achieving the desired result.

Grit 18

Aluminum oxide

Mk

Mk

Aluminum oxide 100

Type

RS265

RS2615

RS1422

Max. size of cleaning work
(mm)

Gear wheel ø1500x1700
Inner gear ø 400x2000
Height 200-500

Gear wheel ø3000x1500
Inner gear ø 400x2500
Height 200-500

Diameter50-300
Length: ≤ 700

Diameter of revolving table
(mm)

1500

3000

-

Diameter of small movement
revolving table (kgs)

500

1000

-

Carrying capacity of revolving table (kgs)

5000

15000

-

Power of shot blasting (kw)

3 x 18.5

3 x 18.5

30

Quantity of shot blasting
(kgs/min)

4 x 280

4 x 280

420

Type of dust catcher

HR4-16

HR4-32

JZC40

Total air rate volume (m3/h)

10000

22000

5940

Power except for dust
cleaning (kw)

107.15

119.3

40.05

External dimensions (mm)

9350 x 3750
x 8790

12000 x 5250
x 8750

8230 x 762 x 1752
