Multiple rotating shot blasting machine

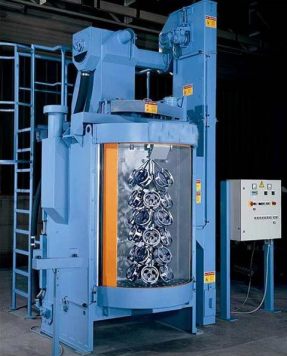

The MR38 & MR48 are Multiple-Step Rotating Point machines featuring overhead rail and continuous duty operation.
These machines can be used to clean rust and sand from casting and work pieces to be fitted to vehicles such as bolsters and side frames, as well as other types of steel structure and mechanical parts.
These machines can be integrated in wet and powder paint lines and are very efficient and low cost maintenance.

Grit 18

Aluminum oxide

Mk

Aluminum oxide 100

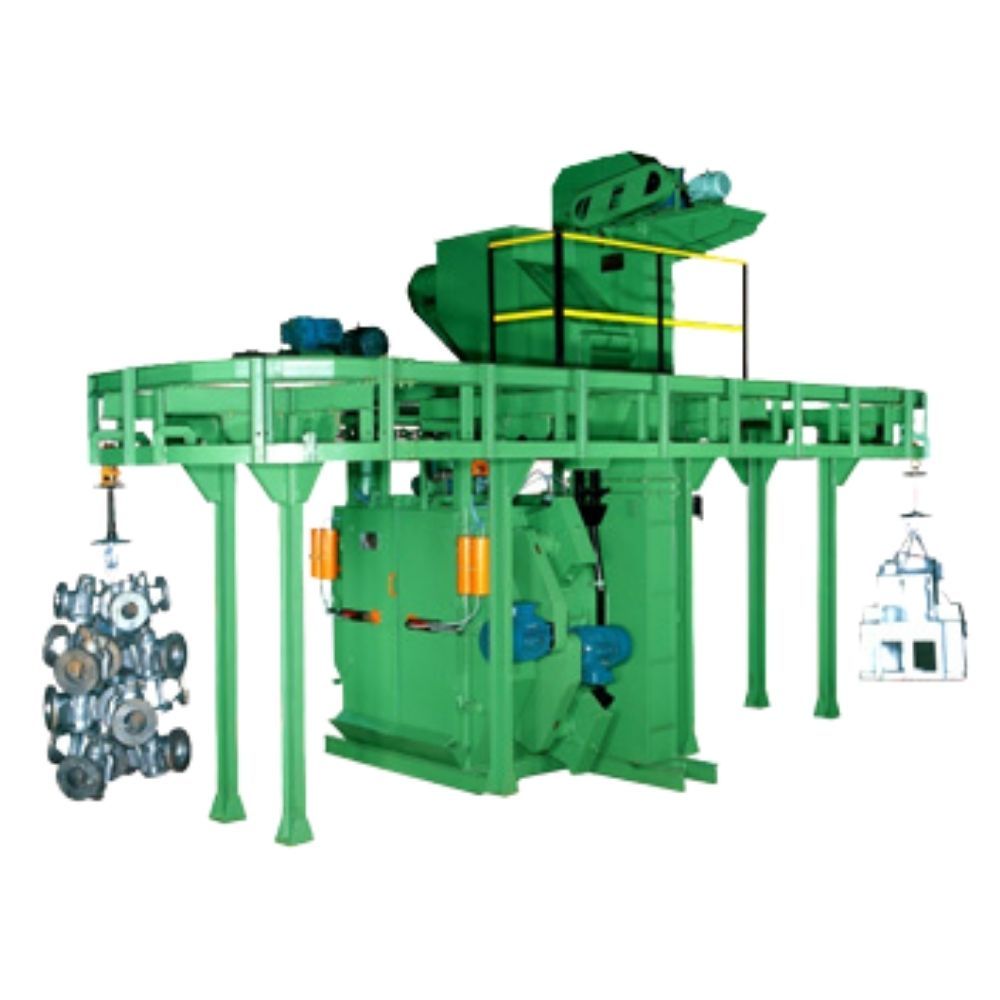

The MR58 Series features hanging chain type continuous duty overhead rail shot blasting machines used for batch cleaning of small to medium sized castings, forged parts and alloys.

Type	MR583	MR585	MR5810	MR588
Cleaning workpiece size (diameter in mm)	800 x 1500	800 x 1500	1300 x 2800	550 x 2200
No. of workpiece position	2	3	2	2
Quantity of impeller head	4	6	6	4
Impeller head volume (kgs/min)	4 x 250	6 x 360	6 x 330	4 x 480
Impeller head power (kw)	4 x 15	6 x 22	6 x 22	4 x 22
Max. hanging weight (kgs)	100	500	1000	800
Productivity hanger (/h)	40	55	50	30
Cleaning workpiece size (mm)	3062 x 1800 x 2800	8500 x 1800 x 3885	8500 x 2300 x 4800	6800 x 2600 3325
Toatal air rate volume (m3/h)	16000	18000	18000	17200
Power, except for dust cleaning (kw)	74.5	186.75	186.85	121.05

Type	MR383 / MR483	MR385 / MR485	MR4810
Cleaning workpiece size (diameter in mm)	800 x 1200	1000 x 1500	1000 x 2500
No. of workpiece position	2	2	2
Quantity of impeller head	4	4	6
Impeller head volume (kgs/min)	4 x 250	4 x 250	6 x 250
Impeller head power (kw)	4 x 15	4 x 15	6 x 15
Max. hanging weight (kgs)	300	500	1000
Productivity hanger (/h)	30-60	30-60	40-60
Cleaning workpiece size (mm)	7680 x 2000x 2900	7680 x 2000x 2900	7680 x 2000x 2900
Toatal air rate volume (m3/h)	17000	19000	19000
Power, except for dust cleaning (kw)	73.15	73.15	114.72
